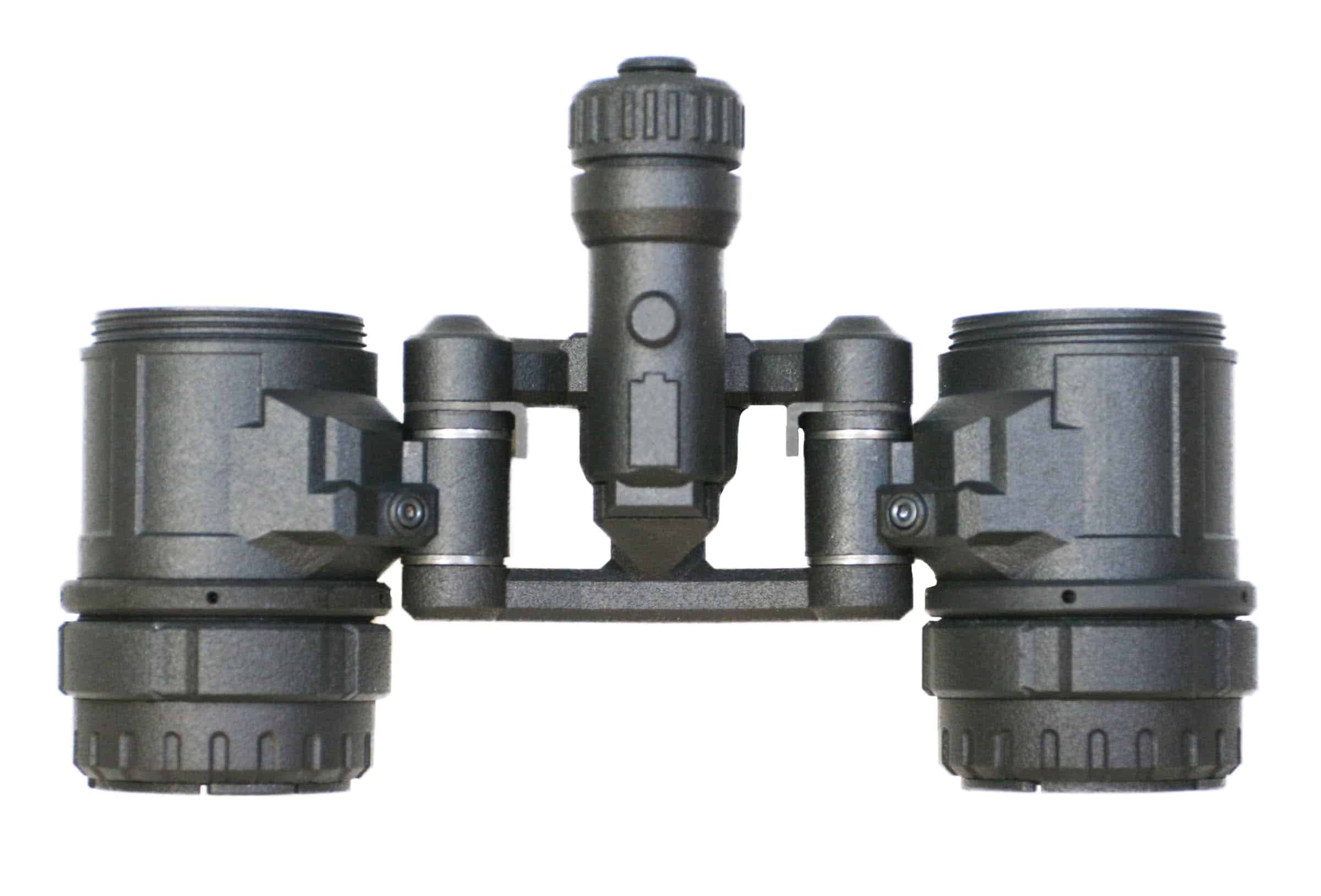

BNVH-1540 | Binocular Night Vision Housing

Description

By Code 4 Defense | Proudly Made in the USA

The BNVH-1540 is the latest innovation from Code 4 Defense—an American-made, cost-effective binocular night vision housing designed with rugged performance and user versatility in mind. After over a year of development, we’ve engineered a platform that delivers lightweight strength, simplicity, and reliability in the most demanding environments.

Built using advanced additive manufacturing techniques, the BNVH-1540 integrates high-strength nylon with precision stainless steel components to provide a robust yet affordable system. The housing is compatible with PVS-15  front and rear lenses, and accepts standard MX-10160 image intensifier tubes, allowing users to customize based on their mission needs and budget. The rear assembly is also compatible with the PVS14 rear lens.

Whether you’re a professional operator or an enthusiast, the BNVH-1540 provides the ruggedness, functionality, and adaptability you need without the inflated cost.

Product Features:

• Packaged in durable hard-sided case
• Lightweight design: Just 17.9 oz fully assembled with mil-spec glass
• Stainless steel dovetail mount and adjustable IPD stops
• Compatible with PVS-15 front and rear lenses
  • Rear lens also compatible with the PVS-14
• Accepts any MX-10160 style image intensifier tube
• Simple push-button operation for quick deployment
• Powered by 1x CR-123A battery with up to 20 hours of runtime
• Fully articulating pods allow compact helmet storage
• Integrated bungee retention points for added security
• Fixed 40 degree field of view
• Designed, produced, and sold in the U.S.A.
• Your BNVH Series housing is backed by a lifetime warranty against manufacturer defects.*This warranty is void if the housing is opened or disassembled
• IMPORTANT BATTERY GUIDELINES:
  • This housing uses CR123 3V batteries
  • DO NOT use rechargeable CR123 BATTERIES–doing so may damage your image intensifier tubes
  • Remove the battery before storing the device to prevent damage

  *Intensifier Tubes and Optics NOT included
